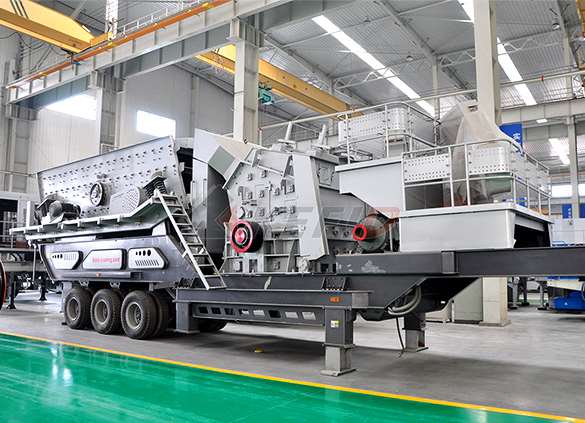

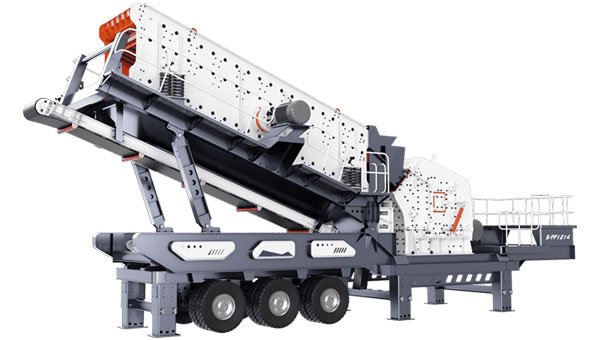

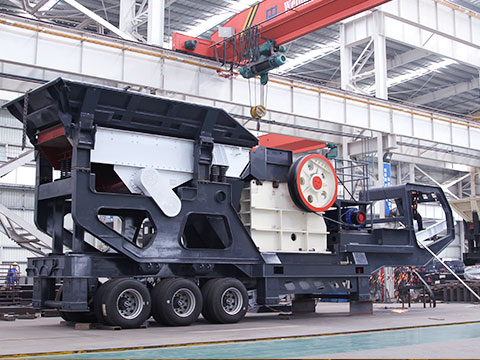

Mobile Screening Plant

    The mobile crushing station is mainly used in construction projects, highways, railways, hydropower proje···

We're here to help:Easy ways to get the answers you need

Introduction

The mobile crushing station is mainly used in construction projects, highways, railways, hydropower projects and other mobile stone operations, especially in urban demolition and construction waste treatment projects.The mobile crushing station is flexible, convenient and highly maneuverable, which can save a lot of infrastructure and relocation costs; it can crush materials on site and move with the advancement of the raw material mining surface, thereby greatly reducing the transportation cost of materials. The classification of mobile crushing stations mainly includes: mobile jaw crushing station, mobile impact crushing station, mobile cone crushing station, impact mobile crushing station, mobile screening station, crawler hydraulic drive mobile station and tire mobile crushing station.


Working Principle



Mobile Screening Plant is a device that uses a spring as a supporting elastic element and a block eccentric vibrator as a vibration source to generate an exciting force through the rotation of the eccentric block, so that the screen box generates a circumferential reciprocating motion. The material continuously makes an approximate round bounce and roll movement on the inclined screen surface, and through repeated comparison with the sieve hole.


Specification

Model

MS1548YK3S

MS1860YK3S

MS2160YK3S

MS2460YK3S

Vibrating screen

3YK1548

3YK1860

3YK2160

3YK2460

Feeding belt conveyor

B800×12.5Y

B800×12.7 Y

B800×12.7 Y

B1000×12.7 Y

Belt conveyor under vibrating screen

B650×7.5 Y

B800×8.2 Y

B1000×8.2 Y

B1400×8.4 Y

 Side-opening belt conveyor

B500×5.6 Y

B500×5.6 Y

B500×5.6 Y

B650×5.6 Y

Number of axles

2

2

2

2

Transportation dimensions (mm)

14740 *3360*4500

15070 *3380 *4533

15070 *3533*4533

15300*4360 *4950
