Introduction

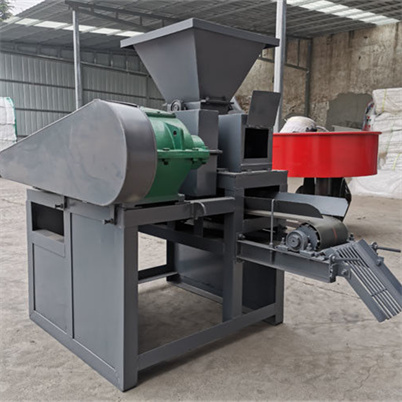

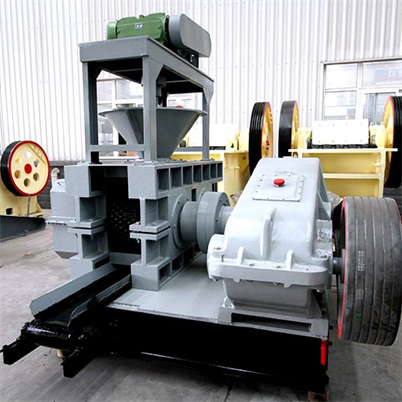

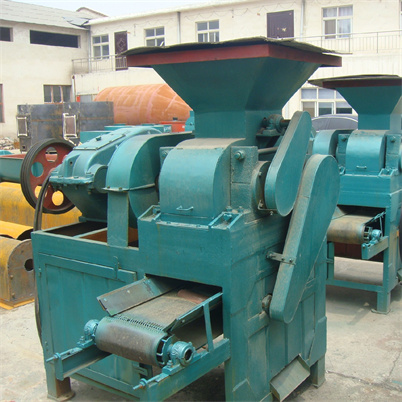

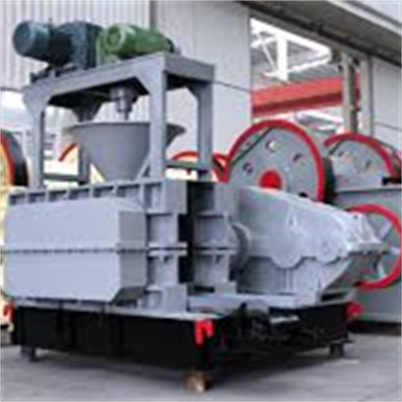

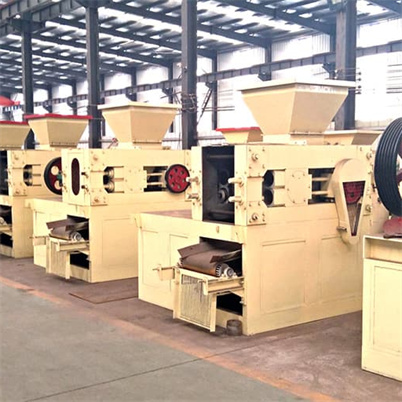

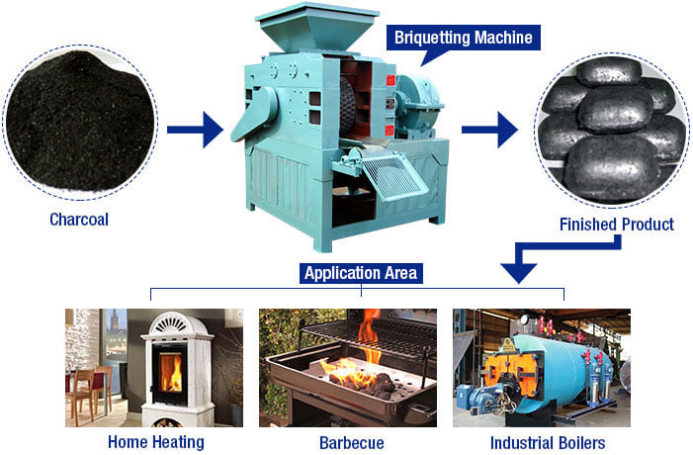

Iron Ore Briquette Machine is mainly applied to do cold ball pressing of coal powder, coal slime, middlings coal, coke powder, coking coal, gold powder, and refractory matter. All powder materials that need to draw up will be pressed by the strong pressure ball machine.The quicklime dry powder ball press machine has a simple structure and short technological process.It can produce ball-shaped products with complete shapes and high strength.The steel board of this machine is sprayed with four painting layers which are water-proof, acid proof, pulverization and sun proof. This feature makes the machine durable in use.

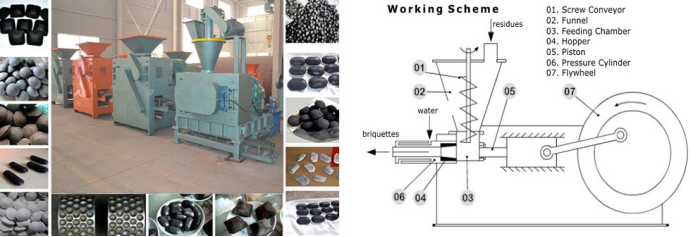

Working Principle
When too many materials or metal blocks enter the space between the two compression rollers, the piston rod of the hydraulic cylinder gets so pressed that the pump will stop working and the energy accumulator will make buffer action face pressure changing.Then the flood valve starts the oil return and the piston rod replacement will widen the space between the rollers, thus forcing hard materials to pass the rollers.Finally, the whole system pressure returns to normal so that the rollers won't be damaged. The strong pressure ball machine can be made flexibly by adjusting its pressure according to different ball pressing density.
Specification
Model | Roll diameter | Roll width | Total pressure | Main motor power | Output | Weight |
GY520-150 | 520 | 196 | 150 | 55 | 2.2-3.5 | 13 |
GY650-220 | 650 | 200 | 220 | 110 | 4-6.5 | 19.2 |
GY750-300 | 750 | 280 | 300 | 185 | 6-8.5 | 34 |
GY1000-350 | 1000 | 440 | 350 | 250 | 10-15 | 50.8 |
GY1000-450 | 1000 | 504 | 450 | 280 | 14-17 | 58.5 |
GY1000-500 | 1000 | 504 | 500 | 315 | 15-20 | 58.5 |
GYS1000-500 | 1000 | 600 | 500 | 280 | 17-21 | 56.5 |
GY1000-540 | 1000 | 900 | 540 | 185Kw×2 | 30-35 | 60 |
GY1200-800 | 1200 | 900 | 800 | 280Kw×2 | 40 | 110 |
GY1400-1000 | 1400 | 1000 | 1000 | 400Kw×2 | 50 | 156 |
Customer case
