Introduction
Jaw Crusher Applied materials: pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, coal gangue, construction waste, ferrosilicon, basalt, sandstone, rocks, ore, glass, cement clinker and some metal. Jaw crusher Application field is kind of coarse crusher, mainly used in mining, building materials, infrastructure construction etc. It can crush various materials with compressive strength not exceeding 320MPa.

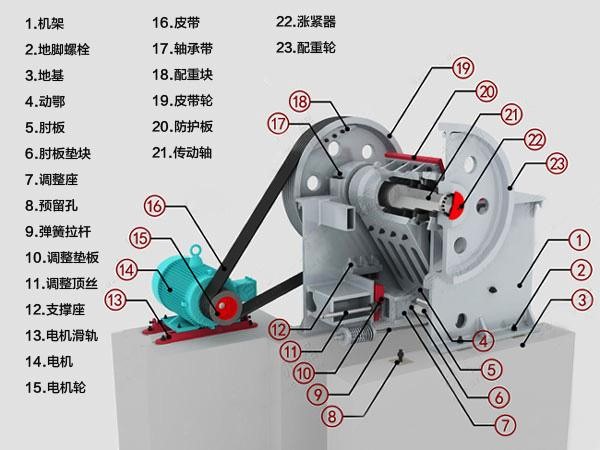

Working Principle
When a jaw crusher works, the motor starts the belt wheel to drive the centrifugal shaft to rotate. The movable jaw blade suspension shaft gets to and away the fixed shaft periodically, which causes a press, rubbing and grinding, etc. to the raw materials. Crushed stone falls down gradually and are discharged out of the jaw crusher when the particle size meets the requirements.
Specification
Model | Feeder size (mm) | Max. Feeding size(mm) | Output size(mm) | Capacity (t/h) | Power (kw) | Weight (t) | Overal Dimension (mm) |
PE-250X400 | 250X400 | 200 | 20-50 | 5-20 | 15 | 3 | 1430X1310X1340 |
PEX-250X750 | 250X750 | 210 | 25-60 | 15-30 | 22-30 | 5 | 1667X1545X1020 |
PEX-250X1000 | 250X1000 | 210 | 25-60 | 15-50 | 30-37 | 7 | 1695X1921X1440 |
PEX-250X1200 | 1200X250 | 210 | 25-60 | 20-60 | 37-45 | 8.5 | 2192X1900X1950 |
PEX-300X1300 | 300X1300 | 250 | 20-90 | 30-90 | 55-75 | 11.5 | 1750X2320X1724 |
PE-400 x 600 | 400X600 | 350 | 40-100 | 15-60 | 30-37 | 7 | 1700X1732X1653 |
PE-500 x 750 | 500X750 | 425 | 50-100 | 40-110 | 45-55 | 12 | 1950X1878X1855 |
PE-600 X 900 | 600X900 | 480 | 65-160 | 90-180 | 55-75 | 19 | 2200X2008X2302 |
PE-750 X1060 | 750 X1060 | 630 | 80-140 | 110-320 | 90-110 | 29 | 2624X2302X3110 |
PE-900 X1200 | 900X1200 | 750 | 95-180 | 220-450 | 132 | 58 | 3550X2823X3196 |
PE-1000 X1200 | 1000X1200 | 850 | 95-190 | 230-500 | 132 | 69 | 3800X3166X3045 |
PE-1200 X1500 | 1200X1500 | 1020 | 150-300 | 400-800 | 220 | 100.9 | 4930X3148X3703 |
PE-1500 X1800 | 1500X1800 | 1200 | 220-350 | 450-1000 | 355 | 132 | 5630X3210X4120 |
