Introduction

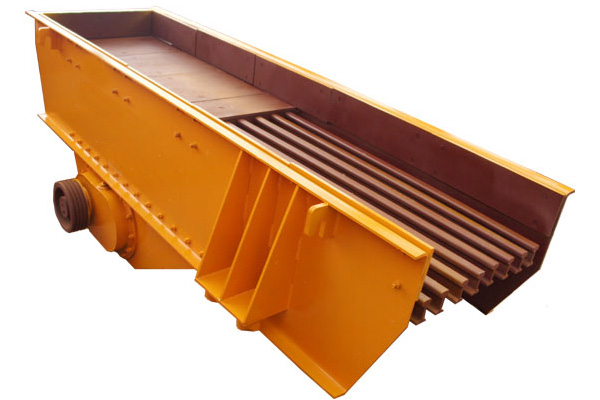

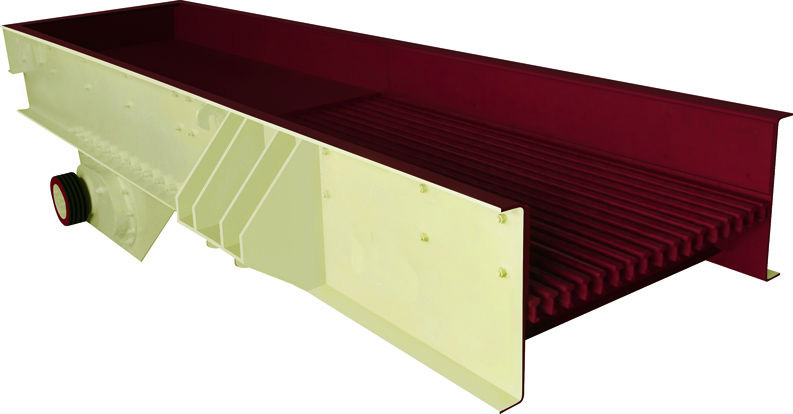

The feeder of this series produced by our company is linear grizzly vibrating feeder, which applies a manner of vibration generator, having the features of stable vibration, reliable operation and long life expectancy. It can continuously and uniformly feed for the crusher so as to improve the mechanical performance and continuous working capacity. The product is usually applied to feed jaw crusher. It is widely used in the crushing and screening plant in the field of mineral processing, building materials water conservancy, and chemical industry.
Working Principle

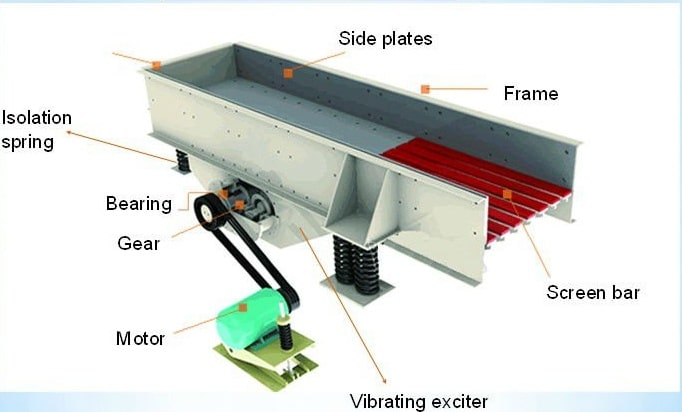

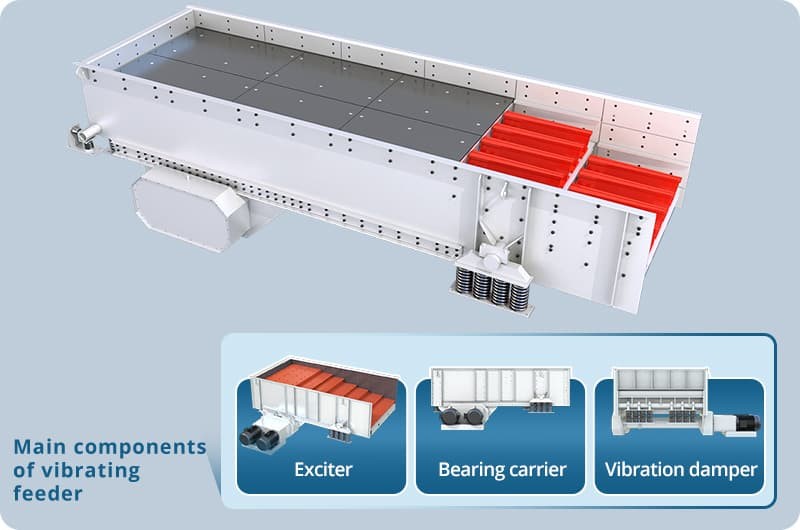

Vibrating feeder consists of the groove, exciter, spring support base, transmission device and so on. The exciter is the vibration source. The exciter is made up of two eccentric shafts (one is the driving shaft, the other is driven shaft) and a gear pair. The motor drives the driving shaft through the V-belt, and the driving shaft drives the driven shaft. The driving shaft and driven shaft rotate conversely at the same time to vibrate the groove. The materials in the groove move forward to achieve the result of feeding. GZD Series vibrating feeder adopts double vibrating motor to vibrate the groove to feed materials to the crusher.
Specification
Model | Feed Opening (mm) | Max. Feeding size(mm) | Capacity (t/h) | Power (kw) | Weight (t) | Overal Dimension (mm) |
ZSW3090 | 3000X900 | 400 | 80-120 | 7.5 | 3.9 | 3110X1800X1600 |
ZSW3896 | 3800X960 | 500 | 120-210 | 11 | 4.2 | 3850X1950X1630 |
ZSW4211 | 4200X1100 | 650 | 180-400 | 15 | 4.8 | 4400X2050X1660 |
ZSW4911 | 4900X1100 | 650 | 280-500 | 15-18.5 | 5.6 | 5200X2050X1700 |
ZSW4913 | 4900X1300 | 800 | 300-550 | 22 | 6.7 | 5200X2350X1750 |
ZSW6016 | 6000X1600 | 1020 | 500-900 | 30 45 | 10.3 | 6160X2918X2292 |
