Introduction
Introduction of Ceramic Ball Mill

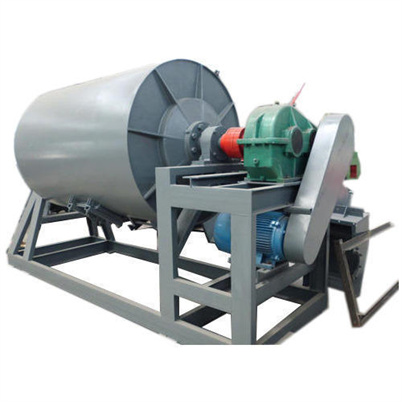

The ceramic-type batch ball mill is a small non-continuously produced ball mill. The utility model has the advantages of simple structure, convenient operation, less auxiliary equipment, and high-definition products can be obtained at one time. The fineness of the product is generally 800 mesh or more, even 2000 to 3000 mesh, and the fineness is easy to control. The use of ceramic lining, high-aluminum ceramic grinding media, can reduce energy consumption and avoid iron pollution. It is applied to small production lines with high product fineness and can not be polluted by iron.
Working Principle

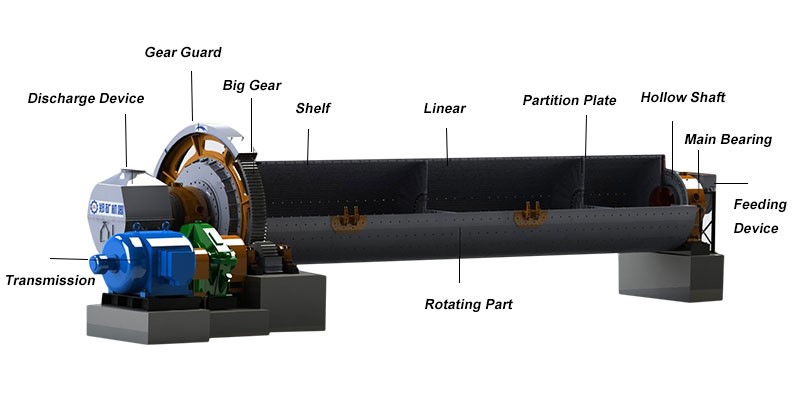

This machine, as grid ball mill, is a horizontal cylindrical turning device with edge gear and two warehouses. The material through the hollow shaft screw evenly enters the first warehouse which is equipped with ladder plate or corrugated plate with different specification steel balls. The cylinder rotating centrifugal force brings the steel balls to fall in a certain height to bang and grind the materials. After the coarse grinded in the first warehouse, materials are put into the second warehouse through single-wall partition which is equipped with plane liner and steel balls for regrinding. Then The powder discharges through the discharge grate plate. The grinding operation is finished.
Specification
|
Model |
Volume(m³) |
Maximum loading(t) |
Capacity(t/h) |
Rotational speed(r/min) |
Motor power(kw) |
Weight(t) |
|
TCQ910×1120 |
0.68 |
0.22 |
0.2 |
36 |
5.5-11 |
3 |
|
TCQ1200×1400 |
1.5 |
0.5 |
0.5 |
32 |
11-18.5 |
3.8 |
|
TCQ1500×1800 |
3 |
1.0 |
1 |
28 |
15-22 |
4.5 |
|
TCQ1800×2100 |
5 |
1.65 |
1.5 |
26 |
18.5-30 |
6 |
|
TCQ2100×2100 |
6.8 |
2.2 |
2.5 |
22 |
22-37 |
7.4 |
|
TCQ2200×2400 |
8.5 |
2.8 |
3 |
20 |
28-45 |
8.2 |
|
TCQ2500×2900 |
13.2 |
4.4 |
5 |
16 |
37-55 |
9.3 |
|
TCQ2800×3700 |
21.2 |
7.0 |
8 |
14.5 |
55-75 |
12.5 |
|
TCQ3000×3700 |
24.3 |
8.0 |
10 |
14 |
75-90 |
18.6 |
