Introduction

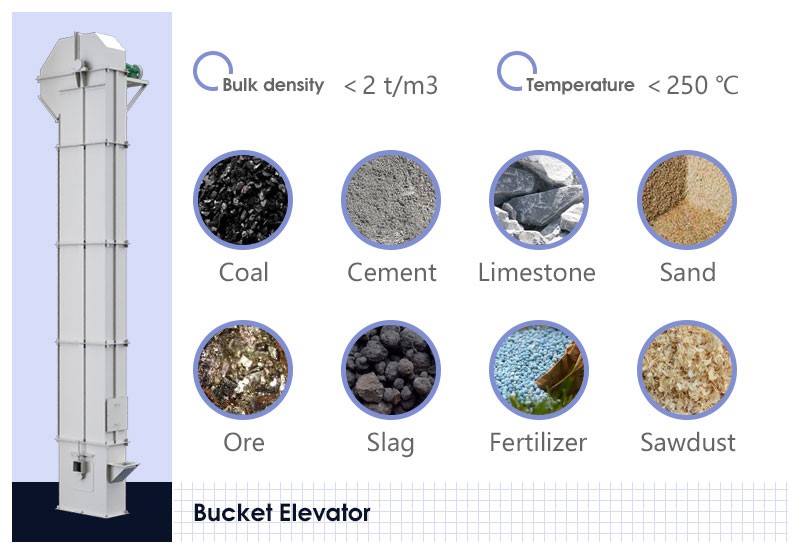

Bucket elevator is an important device used for vertically conveying the particular materials. And it is characterized by large conveying volume, high lifting height, stable running, easy operation and maintenance and long service life, etc. Besides it is widely used in transportation system of building construction, chemical industry,, mining, power station and port transportation, etc. And it is suitable for conveying various powders, granular and block materials with the temperature below 150℃.
Working Principle

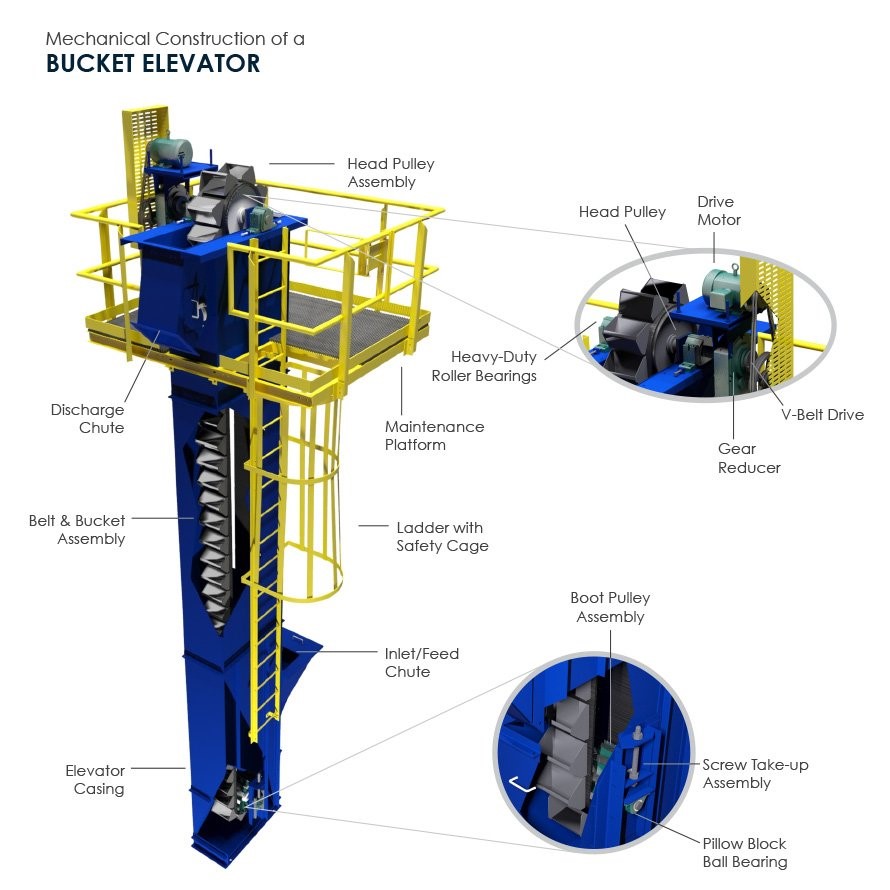

The bucket elevator is a widely used mechanical conveying equipment. The conveyed materials are evenly fed from the inlet chute during working.Driven by the drive pulley, the buckets fixed on the conveyor belt pick up the materials and then rise with the belt conveyor. When they rise above the top drive pulley, the buckets turn over.Then the materials are discharged from the discharge port to be sent to the next process under the action of centrifugal force or gravity.
Specification
Model | Capacity | Hopper | Weight | Running speed | Height | |
Volume(L) | Hopper distance (mm) | |||||
TDG160 | 32 | 2.6 | 260 | 22 | 1.2 | 80 |
TDG200 | 45 | 4.1 | 300 | 21.5 | 1.2 | 80 |
TDG250 | 72 | 6.5 | 325 | 33 | 1.34 | 80 |
TDG315 | 101 | 10 | 360 | 33.2 | 1.5 | 80 |
TDG400 | 158 | 16 | 420 | 42.2 | 1.5 | 80 |
TDG500 | 220 | 25 | 460 | 62.3 | 1.5 | 80 |
TDG630 | 348 | 40 | 520 | 78.53 | 1.68 | 80 |
TDG800 | 492 | 64 | 580 | 106 | 1.65 | 80 |
TDG1000 | 788 | 102 | 650 | 145 | 1.86 | 80 |
TDG1250 | 1220 | 161 | 720 | 155.5 | 1.86 | 80 |
TDG1600 | 1541 | 255 | 820 | 223 | 1.86 | 80 |
