Introduction

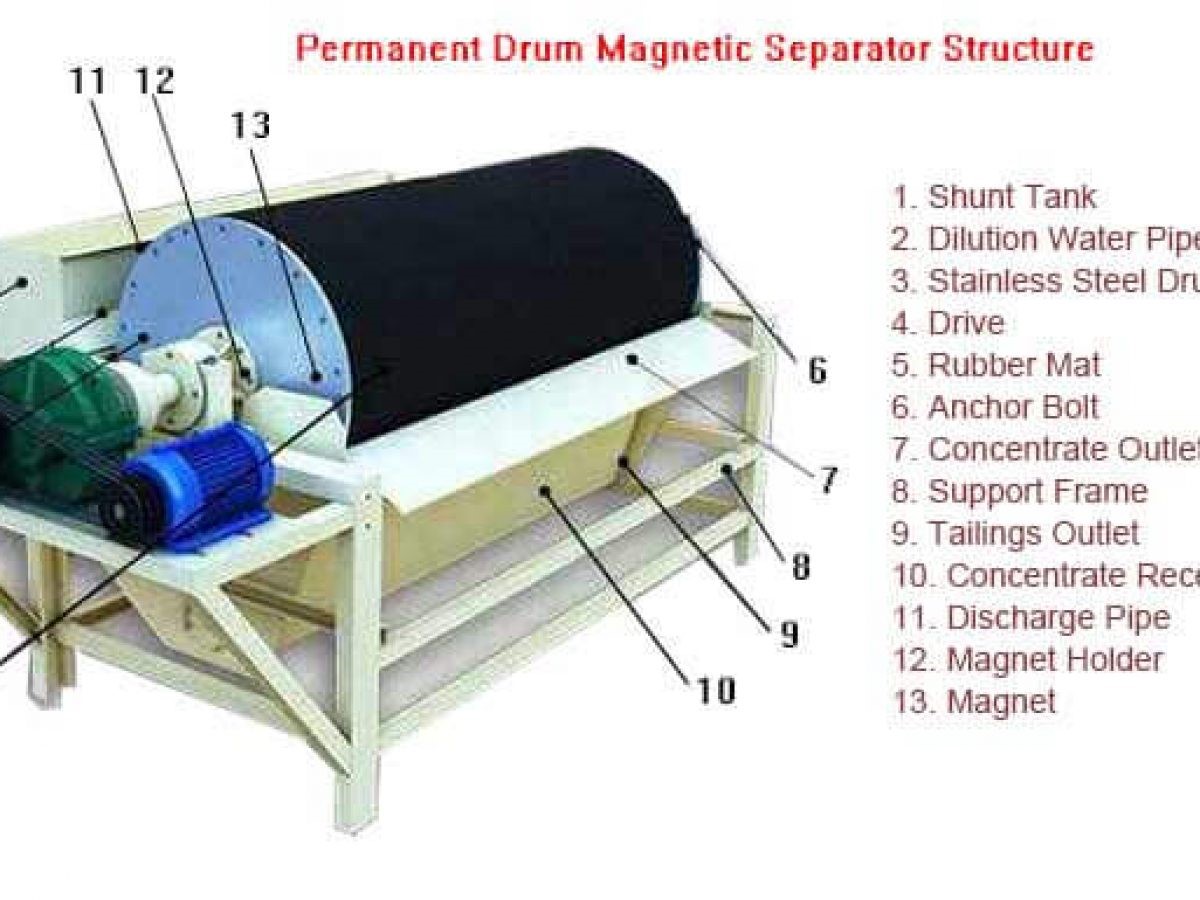

It mainly consists of magnetic , drum, separation trough, gearing, and feeding , discharging ,and overflowing device.It utilizes the different specific susceptibility of various minerals, and separates the magnetic substances in mixture, with the help of magnetic force and mechanical force. This is a new mine selection machine which is developed in the recent 20 years, mainly used in thin grade ferromagnetism mineral dry and wet separating.
Working Principle
First, the electric vibration feeder sends the iron ore sand particles to the upper roller for coarse separation.Second, as the raw iron sand material moves into the separation zone of the magnetic head pulley, magnetic minerals are attracted towards the high intensity steel poles.Third, non-magnetic ore particles are thrown away from the roller surface due to the combined action of gravity and centrifugal force and enter the lower roller for further selection.Finally, with a carefully positioned splitter, the two fractions – magnetically susceptible minerals and non-magnetics – are separated from each other.
Specification
Model | Cylinder dia. | Cylinder length | Rotary speed of cylinder(r/min) | Capacity | Feeding size | Power | Weight |
CTB612 | 600 | 1200 | ﹤35 | 10~20 | 2~0 | 1.5 | 1445 |
CTB618 | 600 | 1800 | ﹤35 | 15~30 | 2~0 | 2.2 | 1655 |
CTB718 | 750 | 1800 | ﹤35 | 20~45 | 2~0 | 2..2 | 1992 |
CTB918 | 900 | 1800 | ﹤35 | 40~60 | 3~0 | 3 | 3162 |
CTB924 | 900 | 2400 | ﹤28 | 45-70 | 3~0 | 4 | 3887 |
CTB1024 | 1050 | 2400 | ﹤20 | 60-120 | 3~0 | 5.5 | 4319 |
CTB1218 | 1200 | 1800 | ﹤18 | 80-140 | 3~0 | 5.5 | 5263 |
CTB1230 | 1200 | 3000 | ﹤18 | 100-180 | 3~0 | 7.5 | 6325 |
CTB 1530 | 1500 | 3000 | ﹤16 | 150-260 | 3-0 | 11 | 9500 |
