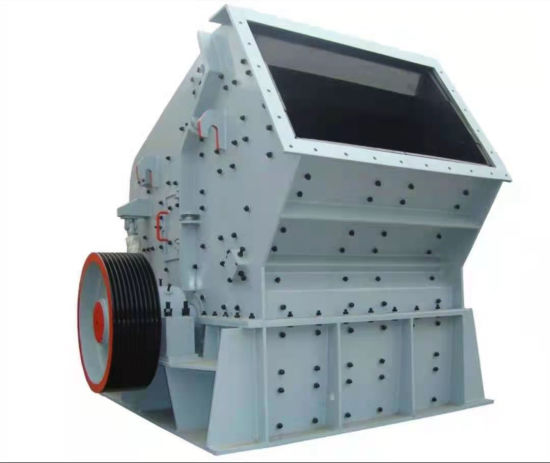

Introduction
The fine crusher is suitable for crushing various brittle materials, and is widely used in machine-made sand and gravel, high-grade highway, railway, water conservancy, airport, construction, cement, refractory, metallurgy and other industries to produce high-quality stone.The fine crusher is a continuous operation equipment. During operation, driven by the motor, the rotor rotates at a high speed. The material enters the first crushing chamber and is crushed, collides with the hammer on the rotor, and then enters the second fine crushing chamber for crushing. The material port is discharged.

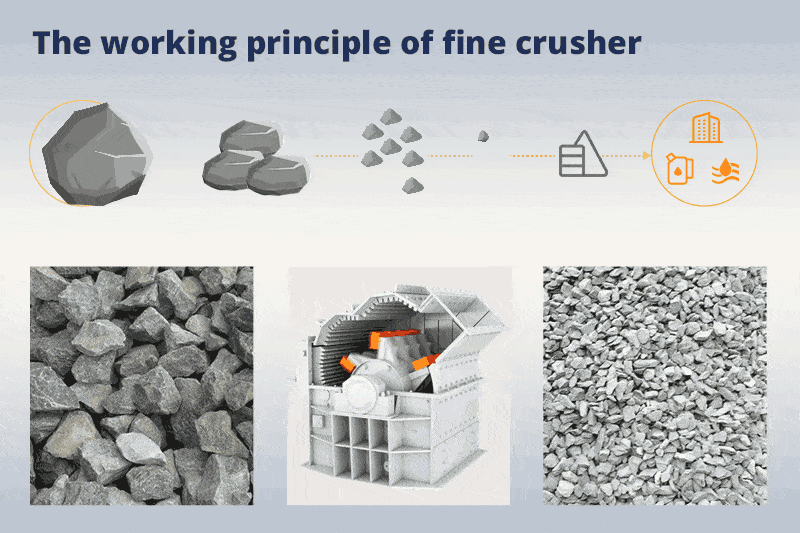

Working Principle
The material is sent to the cavity from the inlet and falls on the high-speed rotating hammer head. The material is initially crushed between the hammer and the impact plate.After the material is repeatedly hammered and impacted with high frequency, it forms a pile on the median septum, then falls on the material plate of the high-speed rotating lower rotor. Finally, it is thrown to the impact plate at high speed to be impacted, crushed and ground by the mobile plate hammer.Therefore, the material undergoes multiple compound pulverization, scouring and grinding in the process of falling by its own weight to achieve an ultra-fine effect, and then is discharged through the discharging port.
Specification
Model | Feeding size (mm) | Feed Opening (mm) | Output size (mm) | Adjust range of discharge(mm) | Capacity (t/h) | Power (kw) |
ZXJ800X400 | <120 | 400X185 | W5 | 5-20 | 20-45 | 37・45 |
ZXJ800X600 | <180 | 500X250 | W5 | 5-20 | 35-55 | 45-55 |
ZXJ800X800 | <180 | 550X330 | W5 | 5-20 | 35-65 | 45-55 |
ZXJ1010X1010 | W180 | 1000X350 | W5 | 5-20 | 45-75 | 55-75 |
ZXJ1200X1000 | <180 | 1200X400 | <5 | 5-20 | 70-110 | 90410 |
ZXJ1200X1200 | W180 | 1200X450 | W5 | 5-20 | 90-120 | 110-132 |
ZXJ1400X1400 | <190 | 1500X500 | W5 | 5-20 | 100-150 | 160 |
ZXJ1600X1600 | W190 | 1600X550 | <5 | 5-20 | 170-250 | 250 |
ZXJ1800X1800 | <190 | 1800X800 | W5 | 5-20 | 250-310 | 315 |
