Flotation machine

    Mine impeller flotation machine for the self-absorption air flotation machine mechanical agitation for non-ferrous metals ferrous···

We're here to help:Easy ways to get the answers you need

Introduction

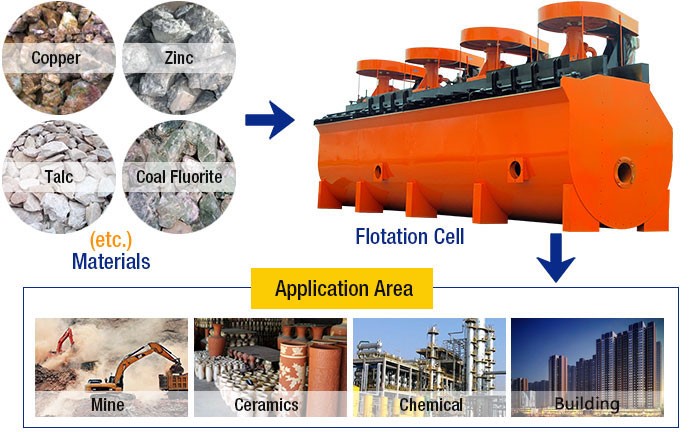

Mine impeller flotation machine for the self-absorption air flotation machine mechanical agitation for non-ferrous metals ferrous metals non-metallic minerals such as sorting.When the mine is grinding or after grinding, add water and necessary medicine produces the mine slurry after mixing, feed into the chute that begin to mix, add air into mine slurry to produce lots of bladder .The mine that not easily wet by water attaches the bladder and float to the surface of mine slurry together to produce the mineralized bladder floor .And the rest leaves in the mine slurry and discharges the mineralize bladder to reach the concentrating purpose.


Working Principle

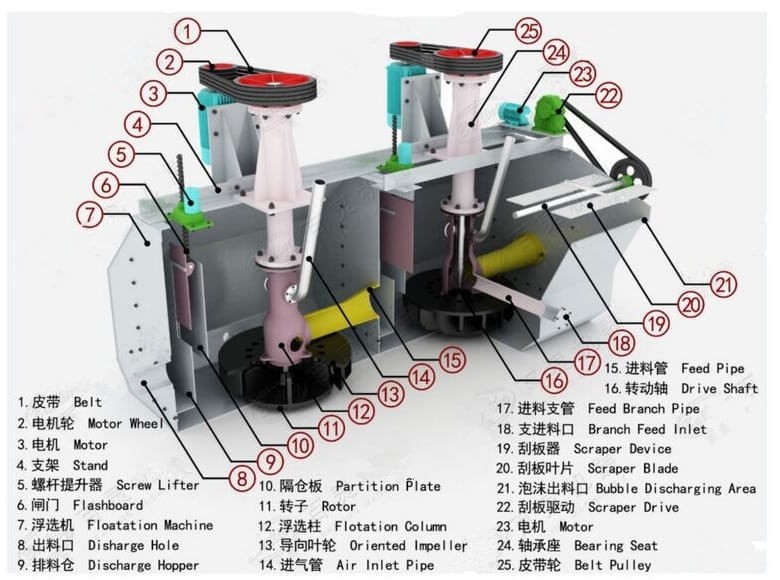

The V-belt of the motor drives the impeller to rotate, generating a centrifugal effect to form a negative pressure.On the one hand, sufficient air is inhaled to mix with the slurry. On the other hand, the slurry is mixed with the reagents, so that the mineral can adhere to the refined foams and then mineralized foams are formed after floating to the surface of the slurry. The useful foams are scraped out by the scraper by adjusting the height of the gate.


Specification

Model

Tank volume
(m³)

Impeller
dia.
(mm)

Capacity
(m³/h)

Impeller
rotary speed
(m³/min)

Motor

Overall dimension
(mm)

Unit weight
(kg)

Model


Power
(kw)


SF0.37

0.37

300

0.2-0.4

352

①Y90L-4

②Y90S-4

①1.5

②1.1

700*700*750

468

SF0.7

0.7

350

0.3-0.9

400

①Y100L2-4

②Y90S-4

①3

②1.1

900*820*950

600

SF1.2

1.2

450

0.6-1.2

312

①Y132M2-6

②Y90S-4

①5.5

②1.1

1100*1100*1100

1373

SF2.8

2.8

550

1.5-3.5

268

①Y160L-6

②Y90S-4

①11

②1.1

1700*1600*1150

2338

SF4

4

650

0.5-4

238

①Y180L-6

②Y90L-4

①15

②1.5

1850*2050*1200

2660
