Introduction

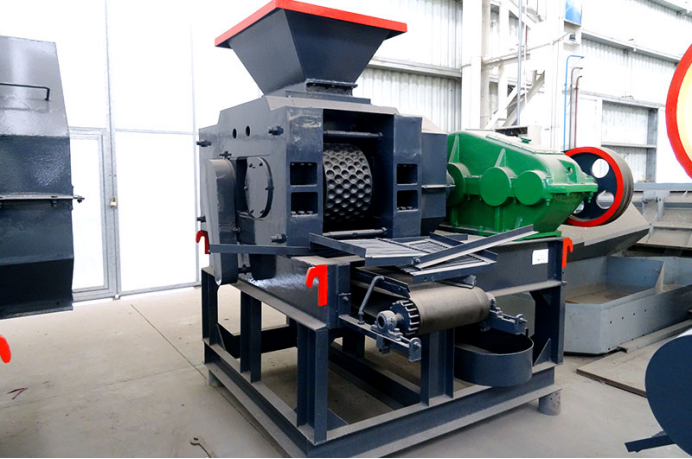

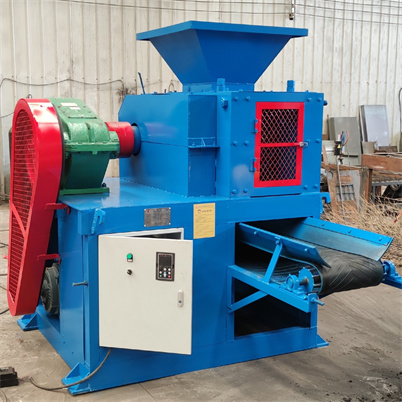

Hydraulic briquetting machine is a new generation of products developed by the mature and advanced technology and based on the development direction of domestic and foreign briquetting enterprises.The whole machine is rigid. The pressure mould is forged by wear-resistant alloy, and the bearing adopts rolling mill bearing series for quenching and tempering treatment.The hydraulic ball press machine adopts a hydraulic system which can increase the pressure intensity. Its hydraulic axis tightens and the whole machine has a compact structure with sturdy and durable Performance.Hydraulic system: Its main function is to automatically provide a stable pressure to the pressure roller, and it also has the function of energy storage and safe overflow. The hydraulic system consists of a fuel tank, an oil pump, an oil filter, a relief valve, a check valve, and an accumulator.
Working Principle

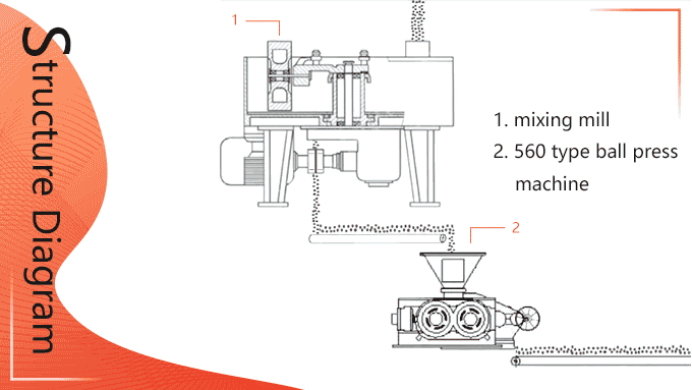

The hydraulic briquette machine runs relying on the cooperation of driving and driven shaft supported by the exposed gear which is driven by the electromagnetic speed regulating motor; after being driven by the belt wheel and cylindrical gear reducer, the power is transferred to the pin coupling shaft.Hydraulic pressure device is installed on the back of the driven shaft block, driven by the electromagnetic speed regulating motor, and after the belt wheel and worm reducer running, the spiral feed device presses materials into the main feed port.As the constant matrix of the electromagnetic speed regulating motor, when the spiral feeder has the same pressing quantity with the inventory of the main body of the press machine, the feeding pressure will stay constant, thus stabilizing the balling quality.
Specification
Model | Roll diameter | Roll width | Total pressure | Main motor power | Output | Weight |
GY520-150 | 520 | 196 | 150 | 55 | 2.2-3.5 | 13 |
GY650-220 | 650 | 200 | 220 | 110 | 4-6.5 | 19.2 |
GY750-300 | 750 | 280 | 300 | 185 | 6-8.5 | 34 |
GY1000-350 | 1000 | 440 | 350 | 250 | 10-15 | 50.8 |
GY1000-450 | 1000 | 504 | 450 | 280 | 14-17 | 58.5 |
GY1000-500 | 1000 | 504 | 500 | 315 | 15-20 | 58.5 |
GYS1000-500 | 1000 | 600 | 500 | 280 | 17-21 | 56.5 |
GY1000-540 | 1000 | 900 | 540 | 185Kw×2 | 30-35 | 60 |
GY1200-800 | 1200 | 900 | 800 | 280Kw×2 | 40 | 110 |
GY1400-1000 | 1400 | 1000 | 1000 | 400Kw×2 | 50 | 156 |
