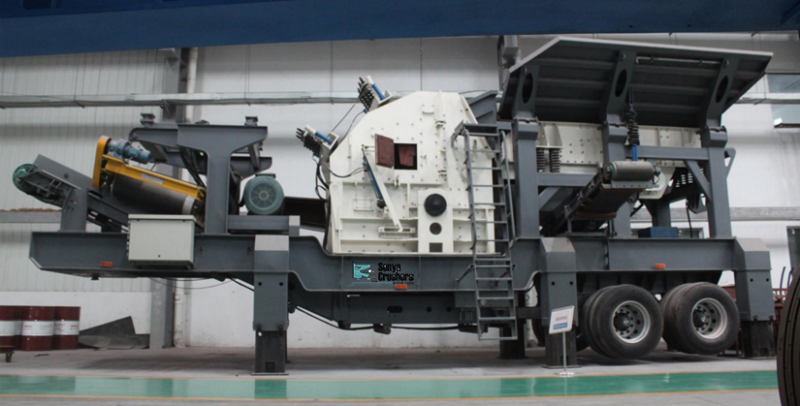

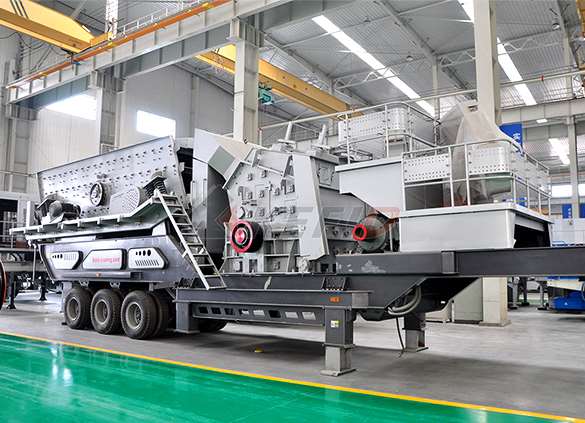

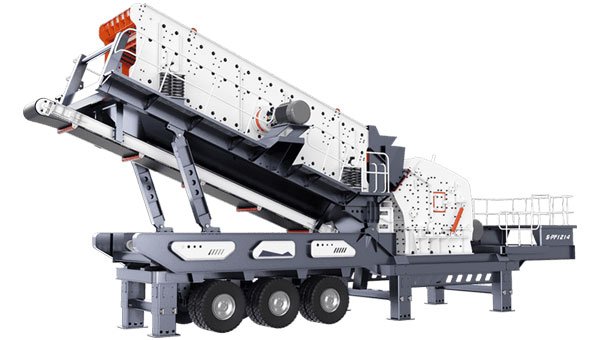

Mobile Impact Crusher

    Mobile Impact Crusher is suitable for soft and medium hardness natural stones crushing, construction wast···

We're here to help:Easy ways to get the answers you need

Introduction

Mobile Impact Crusher is suitable for soft and medium hardness natural stones crushing, construction waste reprocessing etc. which not only has large capacity, low cost, high passive ratio, adjustable final material, but also guarantee the optimized shape and cleanness of final material to meet the high requirement of construction industry.The hydraulic controlled impact crusher guarantees a constant product quality and a high availability.The processing plant is easy to operate with the remote control.The material, which has already the required grain size, is conveyed via a bypass past the impact crusher directly to the discharge chute.Magnetic separator, lateral discharge belt and water spray system are optionally available as approved Sino-German modules


Working Principle



Mobile Impact Crusher is generally used as primary crusher, medium crusher or fine crusher. The raw materials pass the vibrating feeder with pre-sieving function which will separate the small sizes directly and discharged by belt conveyors, the big sizes material will enter the crushing cavity. After crushing sufficiently, the belt conveyor will send it to the next crushing or discharged by belt conveyor directly finishing the crushing work.


Specification

MOBILE IMPACT CRUSHER TECHNICAL PARAMETERS

Model

GM938F1210

GM938FW1214

GM1149F1315

GM1349HD1110

Weight(t)

39

44

54

62

Tire Configuration

PF-1210

PF-1214

PF-1315

HD1110

The Maximum Feeding Size(mm)

350

350

500

400

Capacity(t/h)

70-130

100-180

130-250

112
