Introduction
The VSI sand making machine is a third-level crushing equipment that uses high-speed rotating materials to crush each other and the materials to be crushed by friction (rock-to-rock). It is designed for highways, high-speed railways, high-rise buildings, municipal, hydropower dam construction, The concrete mixing plant provides high-quality sand and gravel aggregates and is the main equipment in the field of artificial sand making and stone shaping. The VSI sand making machine is mainly used for construction sand making, and is an advanced equipment for the production of artificial sand.
Working Principle

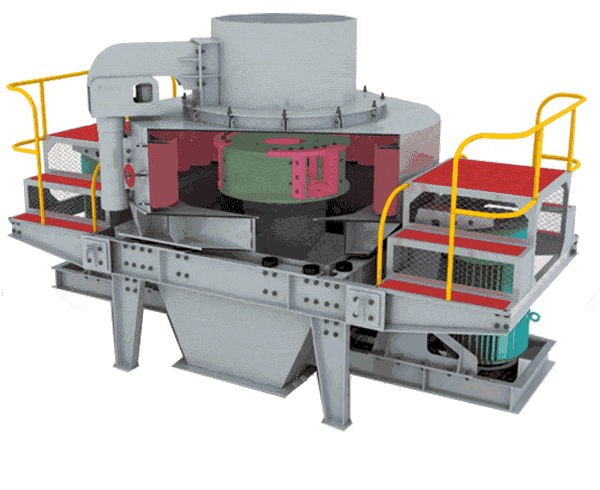

The material falls vertically from the upper part of the machine into the high-speed rotating impeller. Under the action of high-speed centrifugal force, it will collide with another part of the material that is diverted around the impeller in the form of an umbrella. Between the casings, the materials form eddy currents that collide and rub against each other multiple times, and are crushed, discharged directly from the lower part, forming a closed circuit multiple cycles, and controlled by the screening equipment to achieve the required particle size of the finished product.
Specification
Model | VSI 7611 | VSI 8518 | VSI 9526 | VSI 1140 | VSI 1145 | |
Capacity | cascade and central feeding | 120-180 | 200-260 | 300-380 | 450-520 | 500-640 |
Fully central feeding | 60-90 | 100-130 | 150-190 | 225-260 | 250-360 | |
Max. feeding | Soft material | <30 | <35 | <40 | <45 | <45 |
Hard material | <25 | <30 | <35 | <40 | <40 | |
Rotation speed(r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1100-1310 | |
Double motor power(kw) | 110-150 | 180-220 | 264-320 | 400-440 | 400-440 | |
Overalldimension LxWxH(mm) | 3850x2136x2360 | 4564x2400x2661 | 5020x2535x3050 | 5034x2760x3170 | 5100x2790x3320 | |
Voltage | 380V.50HZ | |||||
